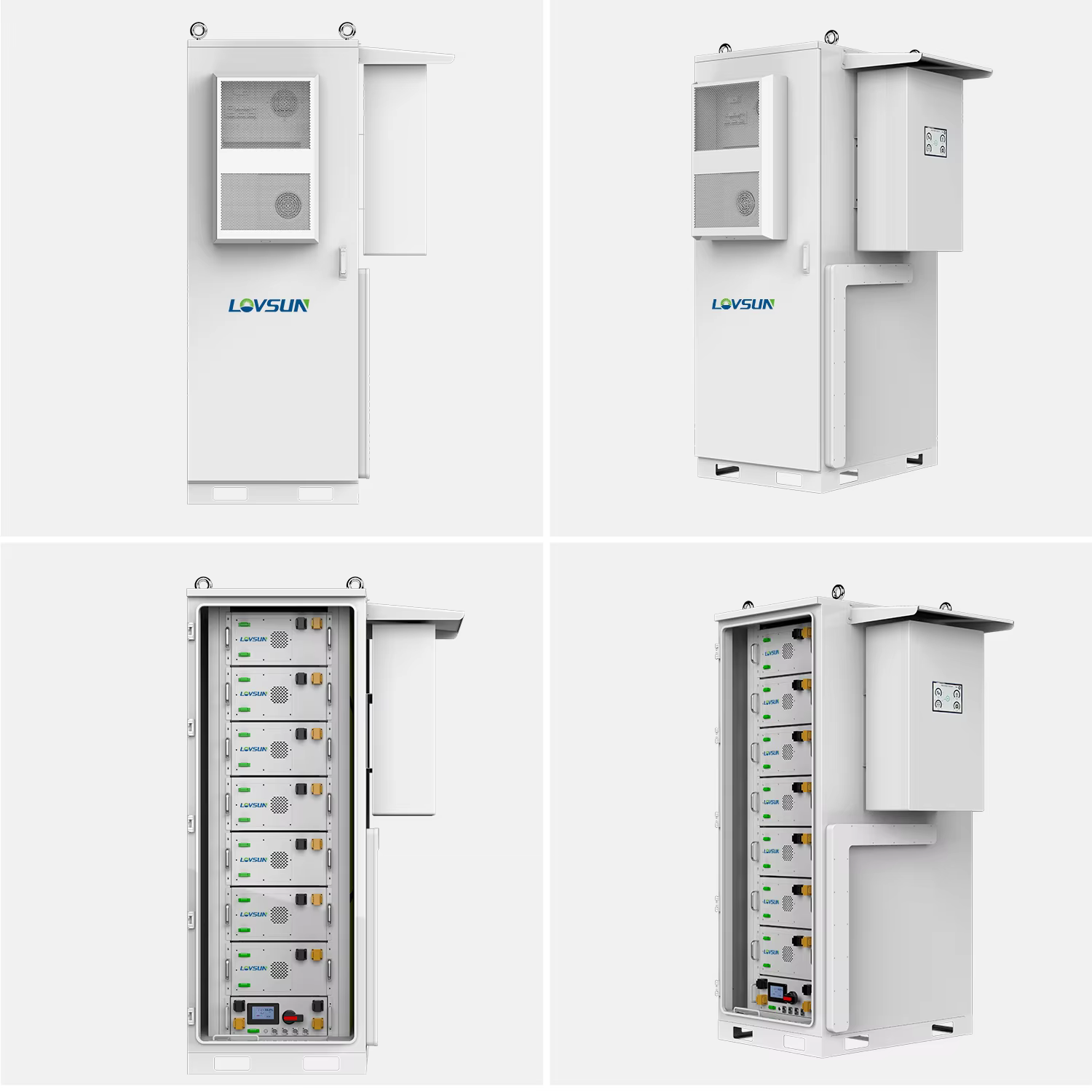

50KW 100KWH Bess Solar Battery Energy Storage System 100KW Inverter And 215KWH Lifepo4 Battery Pack For Commenrcial Use

50KW 100KWH Bess Solar Battery Energy Storage System 100KW Inverter And 215KWH Lifepo4 Battery Pack For Commenrcial Use

Inquiry

  • Overview

  • Inquiry

  • Related Products

Product Description
Specifications
Product
HV100K
Nominal Voltage
358.4V
Nominal Capacity
280AH
Cabinet Size(mm)
1250*1245*2175
Weight(kg)
1260KG
Charge/discharge power MAX
140A
Cooling method
Air-cooled
Protection class
IP55
Type of firefighting
Aerosol
BATTERY SPECIFICATIONS
Battery Types
51.2V-280AH
Nominal Capacity(KWh)
100KWh
Recommend Charge/Discharge Current (A)
100
Max.Charge/Discharge Current(A)
140
Communicaiton
RS485/CAN
Working Temperature
0℃~50℃ Charge-10℃~50℃ Disharge
Transport or Storage Temperature Range
-20℃~60℃
Certification
CE/IEC/UL/UN38.3/MSDS
Design Life
10years+
Cycle Life
(0.5C/0.5C-80%DOD)>6000 times
Cooling method
Air-cooled
Certification
UN38.3/MSDS/ROHS
AC SPECIFICATIONS
Rating
50KW
Overloaded
110%
Rated AC Voltage
400V
Rated frequency
50/60Hz
Communicaiton
Ethernet/Modbus/TCP/IP
Inverter Type
Deye/Solis/Megarevo/Other
Certificates
