Overview
Inquiry
Related Products
|
Datasheet
|
15KTL3-X
|
17KTL3-X
|
20KTL3-X
|
22KTL3-X
|
25KTL3-X
|
|||||
|
Input Data
|
||||||||||
|
Max recommended PV Power (for module STC)
|
22500W
|
25500W
|
30000W
|
33000W
|
37500W
|
|||||
|
Max DC voltage
|
1100V
|
|||||||||
|
Start Voltage
|
250V
|
|||||||||
|
Nominal voltage
|
580V
|
|||||||||
|
MPPT voltage range
|
160V-1000V
|
|||||||||
|
No. of MPP trackers
|
2
|
|||||||||
|
No. of PV strings per MPP tracker
|
2
|
2
|
2
|
2
|
2/3
|
|||||
|
Max. input current per MPPT tracker*
|
27A
|
27A
|
27A
|
27A
|
27A/40.5A
|
|||||
|
Max. short circuit current per MPPT
|
33.8A
|
33.8A
|
33.8A
|
33.8A
|
33.8A/50.7A
|
|||||
|
Output (AC)
|
||||||||||
|
Rated AC output power
|
15000W
|
17000W
|
20000W
|
22000W
|
25000W
|
|||||
|
Max. AC apparent power
|
16600VA
|
18800VA
|
22000VA
|
24400VA
|
27700VA
|
|||||
|
Nominal AC voltage(range*)
|
220V/380V, 230V/400V (340-440V)
|
|||||||||
|
AC grid frequency;(range*)
|
50/60 Hz (45-55Hz/55-65 Hz)
|
|||||||||
|
Max. output current
|
24.2A
|
27.4A
|
31.9A
|
35.5A
|
40.2A
|
|||||
|
Adjustable power factor
|
0.8 leading - 0.8 lagging
|
|||||||||
|
TH Di
|
<3%<>
|
|||||||||
|
AC grid connection type
|
3W+N+PE
|
|||||||||
|
General Data
|
||||||||||
|
Dimensions (W / H / D)
|
525/395/222mm
|
|||||||||
|
Weight
|
23kg
|
|||||||||
|
Operating temperature range
|
-25 °C... +60 °C
|
|||||||||
|
Self-Consumption (night)
|
<1w<>
|
|||||||||
|
Protection degree
|
IP65
|
|||||||||
|
Relative Humidity
|
0~100%
|
|||||||||
|
Display
|
OLED+LED/WIFI+APP
|
|||||||||
|
Interfaces: RS485 / USB / WiFi/ GPRS / RF/ LAN
|
Yes/Yes /Optional/Optional/Optional/Optional
|
|||||||||
|
Warranty: 5 years / 10 years
|
Yes /Optional
|
|||||||||
|
Payment Terms |
T/T
|
EXW
|
30%T/T in advance,paid the balance before shipment
|
||||
|
FOB
|
|||||||
|
CFR(C&F)
|
30%T/T in advance,paid the balance against copy of B/L
|
||||||
|
CIF
|
|||||||
|
L/C
|
Optional L/C amount above 50,000usd, we can accept L/C at sight
|
||||||
|
West Union
|
Optional for amount less than 5000usd |
||||||
|
paypal
|
|||||||
|
Delivery Time
|
7~10 days after receiving payment for one container
|
||||||
Welcome to Alibaba Insurance Order
LOVSUN

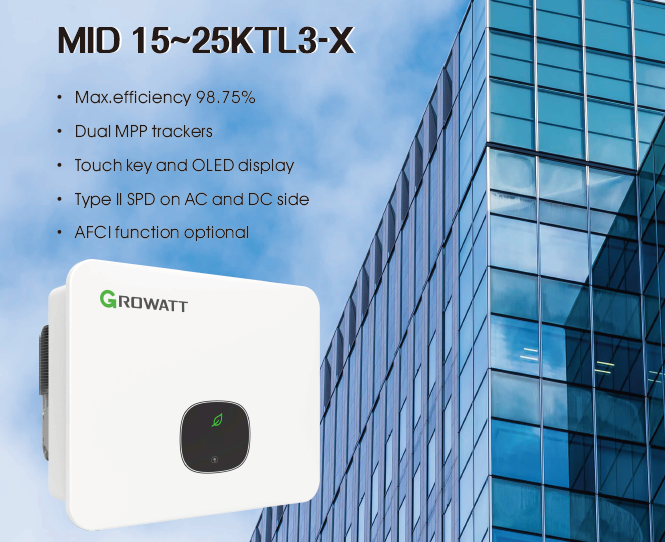

Introducing the In Stock Growatt MID 25KW Dual MPP Trackers On Grid Solar Inverter with Wifi through the item is trusted Lovsun. This cutting-edges solar inverters is the answer is perfect homeowners and businesses looking to transforms the way they consumed energy. This products provides users because of the capability to used energy is solar reduced their reliance on conventional abilities sources, decreasing their energy bills and increasing their energy independence.
Its features which are innovative. The dual MPP trackers allows freedom is maximum regards to array is multiples in a few orientations - making certain that power productions is often optimised. This inverters continuously monitors the capabilities output while the charged power need, to be able to makes sure that you're constantly making the almost all of the vitality your solars panels are generating using the greater levels algorithm.
The Wi-Fi features enables users to remotely monitors and control their panel is systems that are solar. Suitable for Growatt's online monitoring platforms, ShineWeb, making it convenient for users to try their energy productions, spot any dilemmas effectively and swiftly resolve them.
Boasts quality is excellent reliability, and promises a long lifespans for home owners and businesses looking a durable and robust power solutions with Lovsun's in-house technical team's expertise. Compatible with any PV module aswell as the ability to found in any climate, prepares yourself for green power freedom with LoveSun's In Stock Growatt MID 25KW Dual MPP Trackers On Grid Solar Inverter with Wifi.
Surely a choices is environmentally friendly with zero emissions, reducing your carbon footprints significantly. Therefore not simply will you be doing all of one's bit for the environment, but you'll also conserves money in your energy bills and becomes more energy separate into the run is long.
The In Stock Growatt MID 25KW Dual MPP Trackers On Grid Solar Inverter with Wifi from Lovsun is a premium solutions to your power problems in a nutshell. It's an eco-friendly and cost-effective options that provides efficiency is maximum optimal power productions. Using its user-friendly interface, innovative features, and a lifespan is long it's an ideal investments for anybody trying to transitions to renewable energy and enjoys its many advantages. Experience Lovsun's ultimate energy solutions and transforms the way you consume energy today.
