Industrial Commercial Outdoor Cabinet Battery 100kwh 215kwh 372kwh Ess Storage Container 1mw Batterie Solar
Overview
Inquiry
Related Products

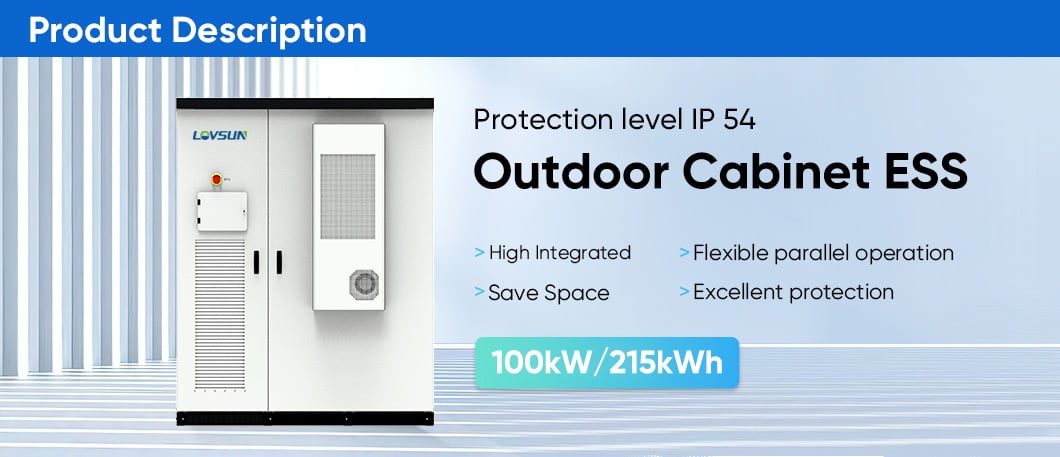

Product Description
Energy storage system
The Monet series outdoor energy storage cabinet integrates energy storage batteries, modular PCS, energy management monitoring system, power distribution system, environmental control system, and fire control system. It adopts modular PCS for easy maintenance and expansion. The outdoor cabinet adopts front maintenance to reduce the occupied area and maintenance channel. It has the characteristics of safe and reliable operation, fast deployment, low cost, high energy efficiency, and intelligent management.
Technical Parameters
|
Model
|
Monet-100TS（DC100)（215kWh）
|
||||||
|
Battery rated capacity
|
215kWh
|
||||||
|
Battery rated voltage
|
768V
|
||||||
|
Battery voltage range
|
672V~864V
|
||||||
|
Battery type
|
Lithium iron phosphate battery(LFP)
|
||||||
|
Battery cell capacity
|
280Ah
|
||||||
|
Series of Battery
|
1P*20S*12S
|
||||||
|
Maximum charge and discharge current
|
140A
|
||||||
|
Photovoltaic rated capacity
|
100KW
|
||||||
|
Photovoltaic voltage range
|
200-450V
|
||||||
|
Rated AC power
|
100KW
|
||||||
|
Rated AC current
|
144A
|
||||||
|
Rated AC voltage
|
400V，3W+N+PE/3W+PE
|
||||||
|
Rated AC frequency
|
50/60Hz
|
||||||
|
THDI
|
＜3%（Rated power）
|
||||||
|
Protection level
|
IP54
|
||||||
|
Isolation mode
|
No-Isolation(Adding isolation transformer is optional)
|
||||||
|
Shutdown self-discharge
|
＜100W（Without transformer）
|
||||||
|
Display
|
LCD
|
||||||
|
Relative humidity
|
0 ~ 95% (no condensation)
|
||||||
|
Noise
|
＜78dB
|
||||||
|
Ambient temperature
|
-25℃ to +60℃(with derating at temperatures above 45℃)
|
||||||
|
Cooling mode
|
Intelligent air-cooled
|
||||||
|
Altitude
|
3000m (> 3000m reduction)
|
||||||
|
Communication interface
|
CAN/Ethernet / 485
|
||||||
|

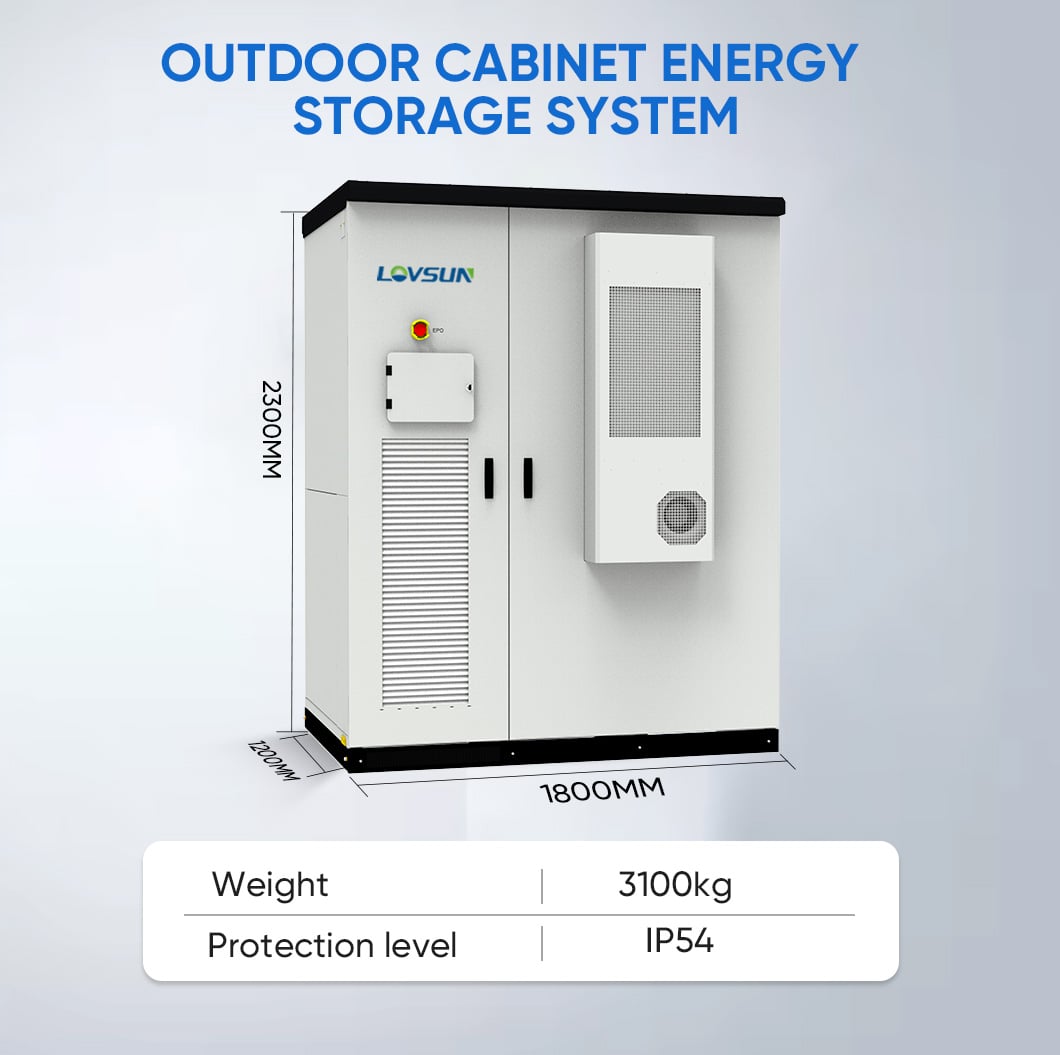

Size (W * D * H)
|
1800*1200*2300mm
|
||||||
|
Weight (approx.)
|
3100KG
|
||||||

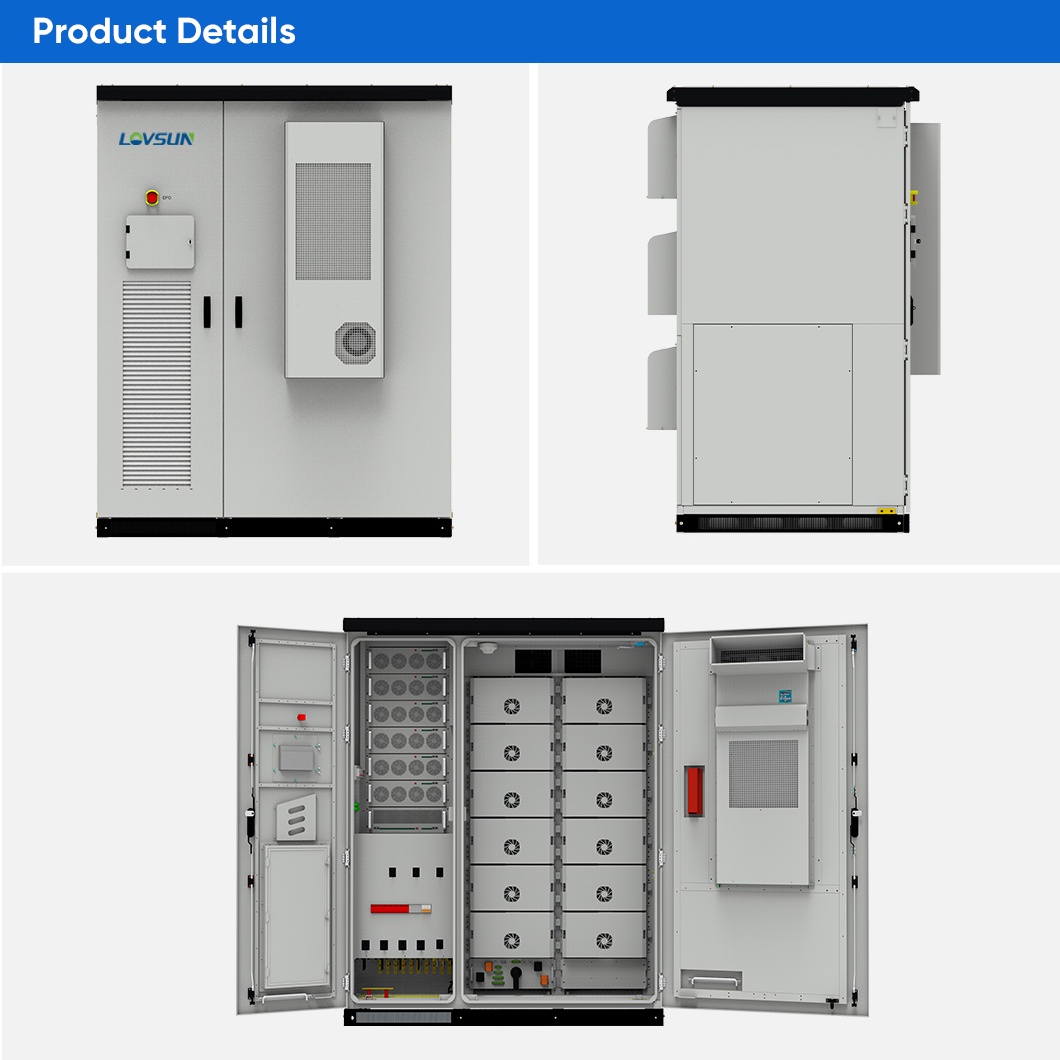

Product Overview
Transportation Method

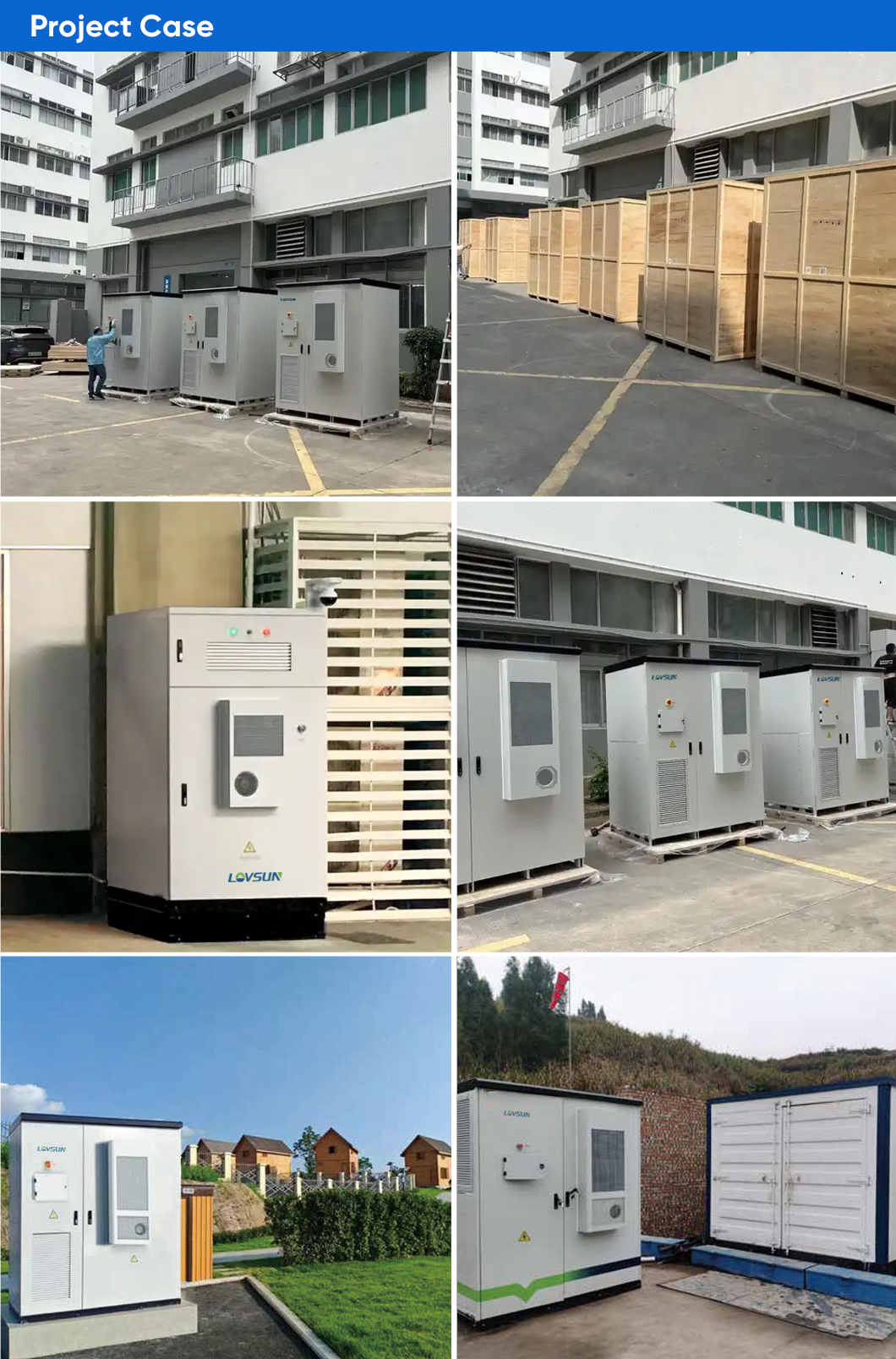

Project
Certificates
Our Factory
